Chick and Quail
Brooder
Model CQB20
Brooder
Model CQB20 Brooder
Standard FeaturesInterior Eating Area of Feed Trough is 1” x 1” x 27” (2.54 cm x 2.54 cm x 68.6 cm). Trough fills from outside — 4” x 27” (10.2 cm x 68.6 cm) opening. Feeder capacity - 580 cubic inches (.01 cubic meters). Holds about 7 lbs. (3.2 kg) of pelleted feed. Feeder easily removed.
Brooder
Model CQB20 BrooderStandard are 2 sliding solid panels allowing brooder to be uniformly warm for the first few days.
Model CQB20 Brooder
Rear OpeningRear Opening 14” x 4” (35.6 cm x 10.2 cm)
Caster
Base
You Can Stack
Up to Five Brooders
Caster Base
Model CQB600Order Model CQB600, our swivel caster base. This includes Model 45170 5 socket outlet panel. You can stack up to five brooders. Caster base places bottom of lowest brooder at 9 inches (22.9 cm) from floor. Swivel casters.
You Can Stack
Up to Five BroodersYou can stack five brooders. Please note that if you do, the top brooder will be more than 6’ from the ground. Most producers stack four units
Growout Pen
Model CG020Growout Pen - Model CG020 - is identical to our CQB20 brooder except that it has no heater. CQB600 caster base is designed for either our brooder or our growout pen. Model CG020 is not designed for holding birds which require more than 10” (25.4 cm) of headroom.

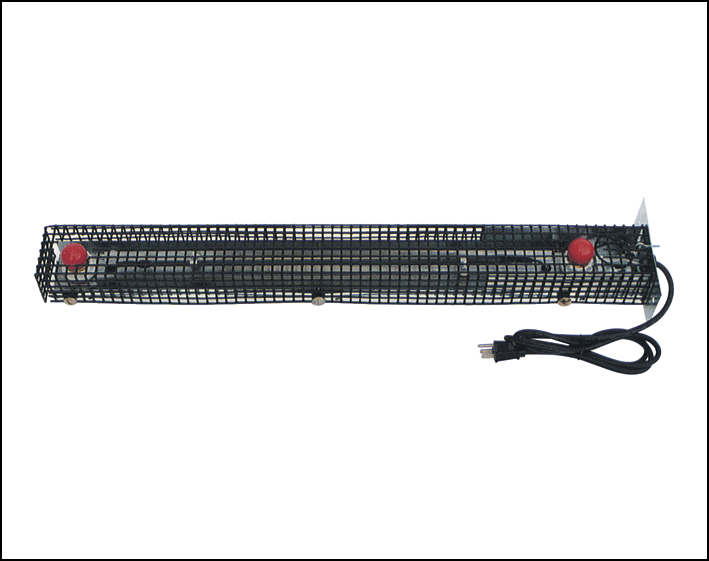

Brooder
Heater
Model BRHTR20
Is Standard
Model BRHTR20
Thermostatically ControlledModel BRHTR20 Brooder Heater is standard. Thermostatically controlled. Heater assembly can be easily removed for thorough cleaning of brooder. Two lights (Model R7, 7.5 Watts). One light is on constantly; one light comes on when element is heating. Heater sold separately for those wishing to construct their own brooder. Thermostat range is 70°-120° F (21°-49° C) in 1 - 180° turn. 250 Watts, 115 Volts.

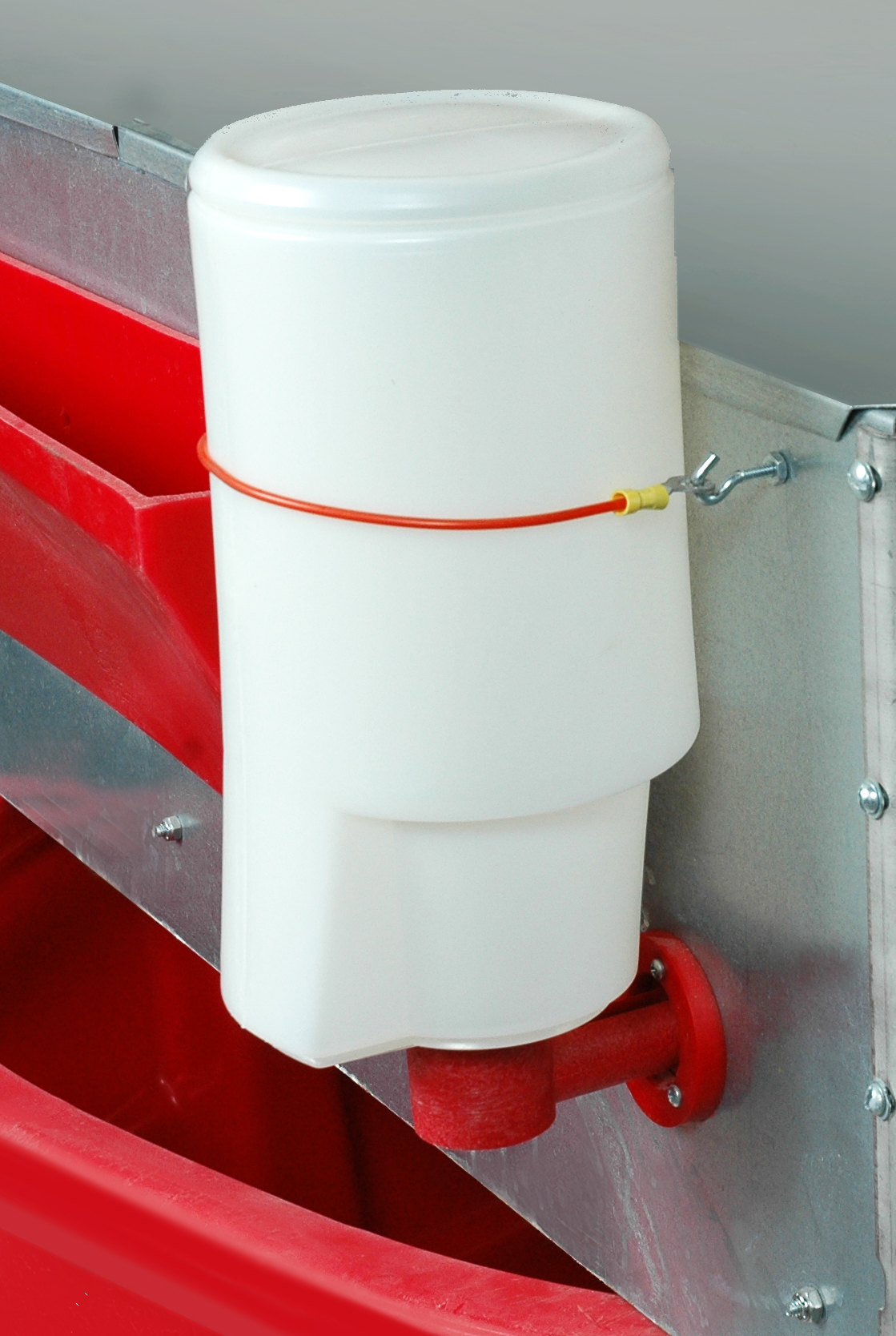

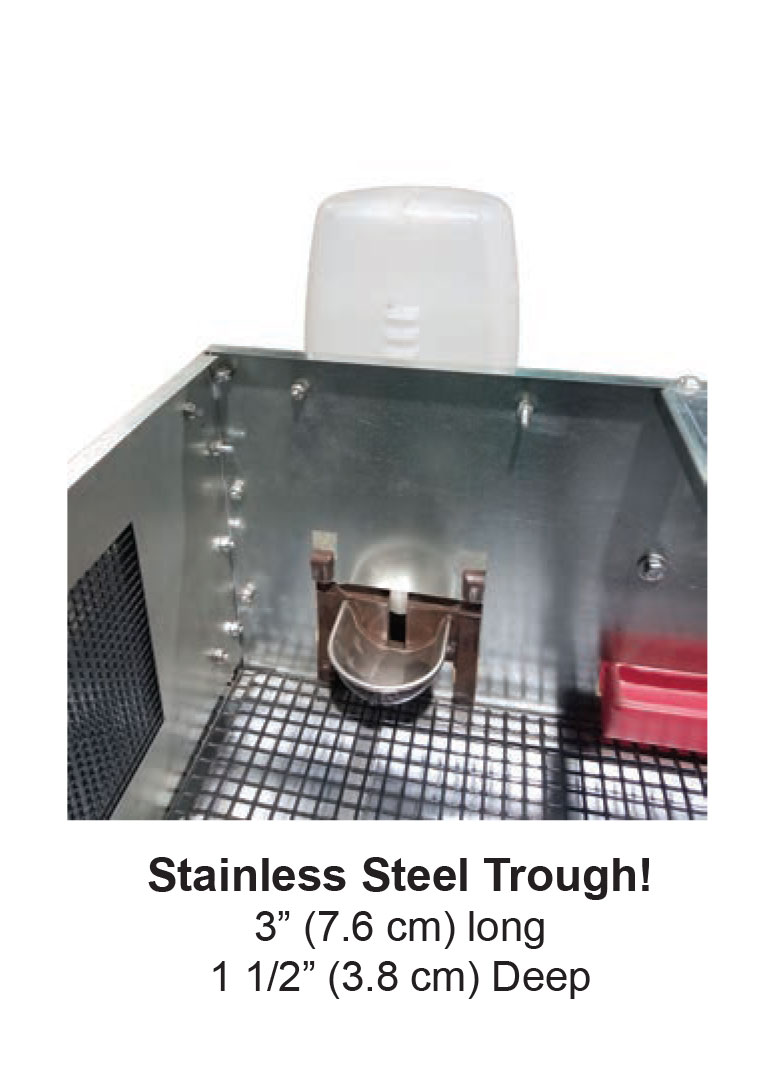

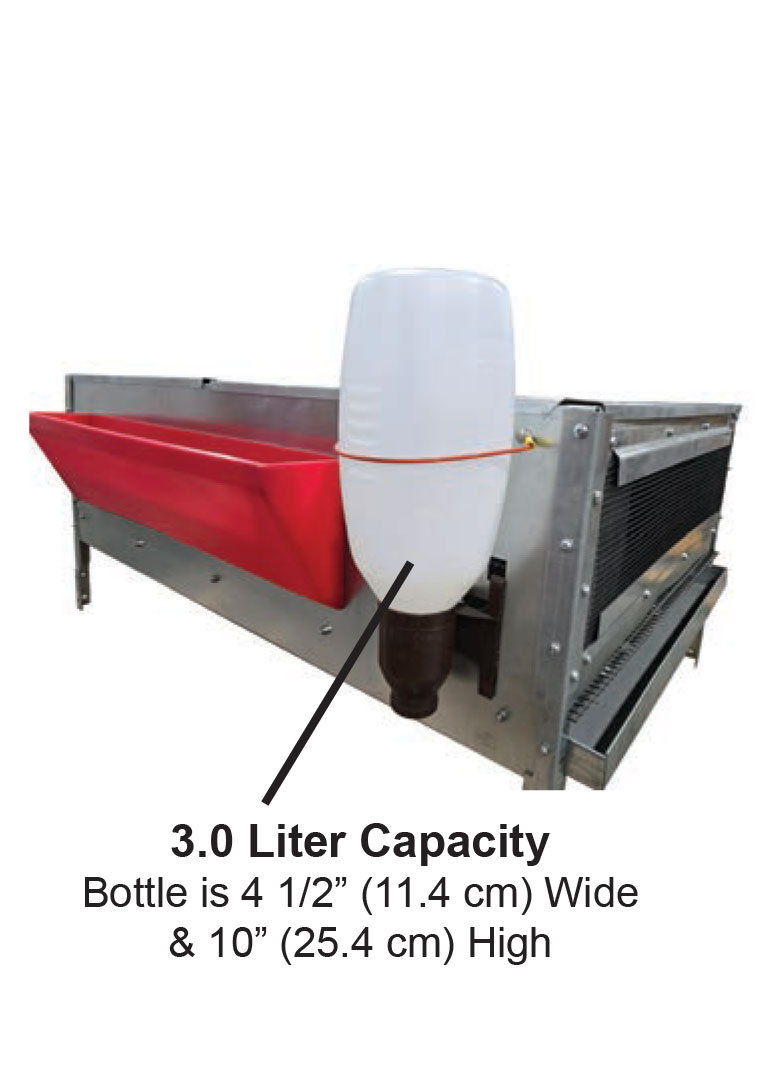

Cage
Drinker
Less Cleaning Time
Less Filling Time

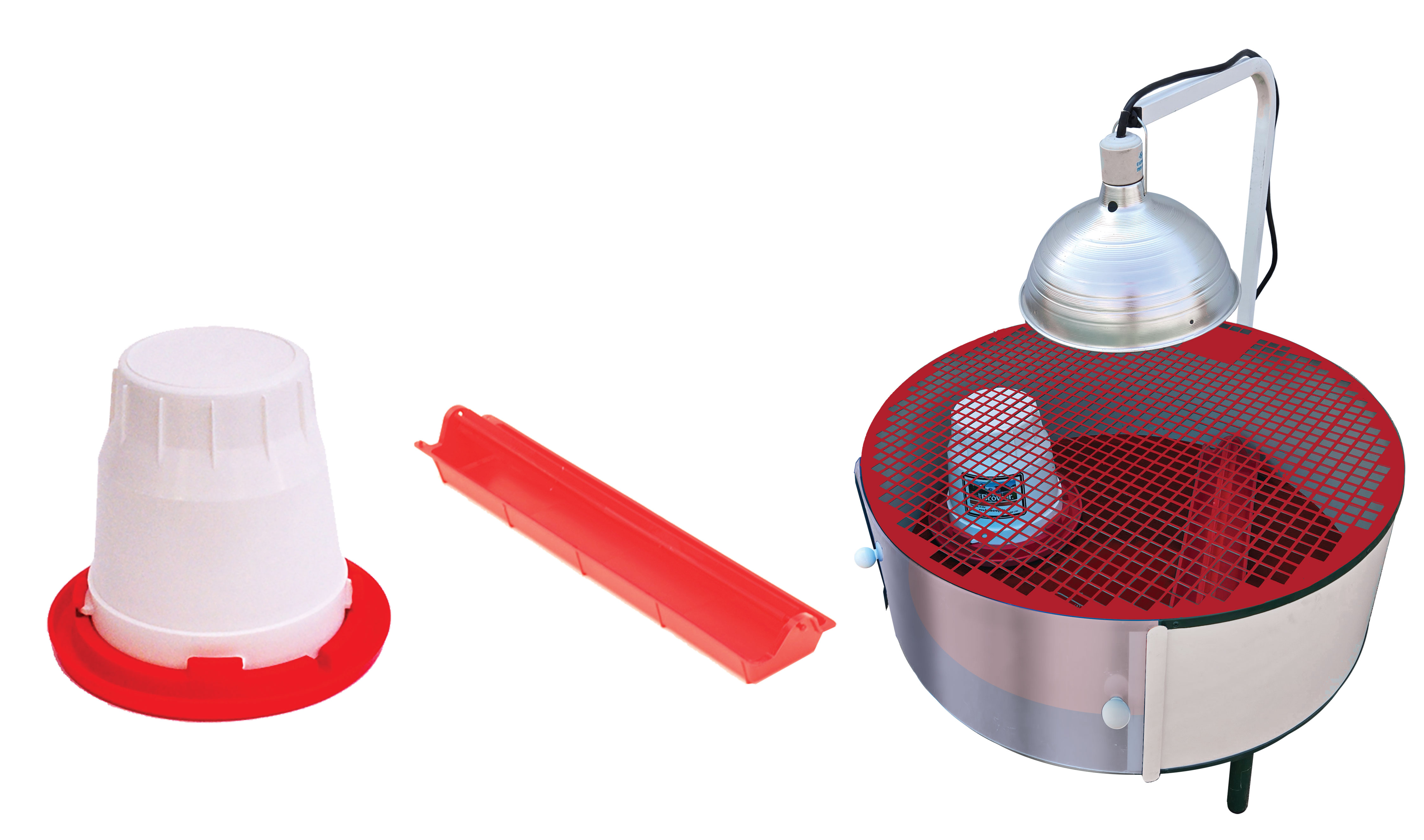

Chick Brooding Cage
Model CBC10
Approximate capacity: 20-30 chicks
27" (69 cm) Diameter, 10" (25.4 cm) Inside Height
Total height is 15" (38 cm) with the legs. Wt. 14 lbs (6.4 kg)
Add drinker and feeder as you wish. We recommend Brower's One Gallon Fountain Feeder Model 1GF and our Trough Feeder Model RT20.
Add a UL listed single bulb brooder available at most farm stores.
